1. Introduction

The rapid advancement of robotics, automation, and artificial intelli- gence has ignited a revolution in robotics. While industrial robots have proliferated over the past few decades, there’s been a recent surge in the integration of robots into our daily lives. This shift has led to a significant change in robotics research focus, moving from industrial applications to service robots. These robots now serve as assistants in various tasks such as cooking, cleaning, and education, among others. Consequently, this transformation has redefined the role of human users, evolving them from primary controllers to collaborative teammates, fostering increased interaction between humans and robots.

While robots can autonomously handle tasks in certain scenar- ios, human interaction is often necessary. Unlike industrial robots that perform repetitive tasks, service robots are designed to engage with humans while carrying out their functions. In such contexts, it’s crucial for interactions to feel natural and intuitive.

To achieve this, interaction components should mirror those commonly observed in human-to-human interactions. Human in- teractions typically involve gestures, gaze, speech, and facial ex- pressions. While speech effectively conveys complex information, gestures can indicate direction, location within a scene, and com- mon task-specific actions. Combining speech and gestures enhances the interaction experience by enabling intuitive communication and conveying meaningful commands.

In this work, our focus was on integrating pointing and four distinct hand gestures with verbal interactions. We developed a neural network model to extract task parameters from verbal instructions, utilizing a dataset of 60,769 annotated samples. For recognizing pointing gestures, we employed AlphaPose to capture skeletal joint positions and calculated the forearm’s angle and length ratio to determine the pointing direction. Additionally, we predicted the Object of Interest (OOI) based on the shortest distance from the pointing direction vector. Finally, we identified four common hand gestures—bring, hold, stop, and point—using hand landmarks from Google’s Mediapipe and trained a 3-layer fully connected neural network for gesture recognition. This integration not only enhances natural interaction but also gathers crucial additional information and context, thereby aiding in disambiguating and inferring missing task parameters. By combining speech with gestures, our system enhances the richness and clarity of interactions, which is essential for service robots designed to assist in everyday tasks. To this effect, the following are our contributions:

1. Multimodal Integration: Unlike existing approaches that often rely on a single mode of interaction, our research integrates pointing gestures, four distinct hand gestures, and verbal in- structions. This multimodal integration is crucial for creating interactions that are more natural and intuitive, closely mir- roring how humans communicate with each other.
2. Enhanced Task Parameter Estimation: By combining verbal commands with gestures, our system is able to disambiguate and infer missing task parameters more effectively. This leads to more accurate and reliable task configurations, which is a significant advancement in the field of human-robot interac- tion.

3. Real-time Processing: Our framework operates in real-time, managing multiple inputs concurrently. This capability is vital for practical applications where timely and responsive interactions are required.
4. Experimental Validation: We conducted experiments to val- idate our approach, demonstrating its efficacy in generating reliable task Our results show that the integra- tion of gestures and verbal instructions significantly improves the system’s performance in real-world applications.

Our work introduces a framework that seamlessly integrates multiple forms of communication. The ability to interpret and com- bine verbal commands with pointing and hand gestures represents a significant step forward in creating more intuitive and effective human-robot interactions. This multimodal approach not only en- hances the naturalness of interactions but also provides the robot with richer contextual information, enabling it to perform tasks more accurately and efficiently.

The paper follows this structure: the subsequent section pro- vides a concise overview of prior research on gesture recognition techniques and Natural Language Understanding in Human-Robot Interaction (HRI) design. We then proceed to elaborate on the methodology of our work. Subsequent chapters incorporate our evaluation, including experimental results and observations. Finally, we summarize our findings in the concluding section of this paper.

2. Related Works

2.1. Natural Language Understanding in HRI

In [1], the author presented a hierarchical recurrent network cou- pled with a sampling-based planner to enable the comprehension of sequences of natural language commands within a continuous con- figuration space. Similarly, in [2], the author devised a system that interprets natural language directions for robots by extracting spa- tial description clauses, using a probabilistic graphical model that grounds landmark phrases, evaluates spatial relations, and models verb phrases. In [3], the author explored the application of statistical machine translation techniques to enable mobile robots to interpret unconstrained natural language directions, effectively mapping them onto environment maps, leveraging physical constraints to manage translation complexity and handle uncertainty. Additionally, in [4], the author demonstrated the robot’s capability to learn action se- quences’ conditions from natural language, promptly updating its environment state knowledge and world model to generate consis- tent new plans, highlighting both specific operational success and the dialogue module’s scalability and responsiveness to untrained user commands. In [5], the author explored spatial relationships to create a natural communication channel between humans and robots, showcasing in their study how a multimodal robotic interface integrating linguistic spatial descriptions and data from an evidence grid map enhances natural human-robot interaction. In addition, in [6], the author introduced Generalized Grounding Graphs, a dy- namic probabilistic graphical model that interprets natural language commands for autonomous systems navigating and manipulating objects in semi-structured environments.

While prior research predominantly addressed navigational tasks, our approach extends this by employing deep learning tech- niques to extract specific parameters from single instructions perti- nent to collaborative tasks.

2.2. Gesture Recognition In HRI

In [7], the author proposed a two-stage Hidden Markov Model (HMM) approach aimed at enhancing Human-Robot Interaction (HRI) by enabling intuitive robot control via hand gestures. The first stage identifies primary command-like gestures, while the sec- ond stage focuses on task recognition, leveraging Mixed Gaussian distributions within HMM to improve recognition accuracy. In [8], the author introduced a robust HRI system that continuously per- forms gesture recognition to facilitate natural human-robot interac- tion by employing online-trained ad-hoc Hidden Markov Models to accommodate intra-user variability, evaluated through studies on hand-formed letters and natural gesture recognition scenarios. In [9], the author introduced an HRI system using gesture recogni- tion that incorporates multiple feature fusion, failure verification, and validation through real-world testing with a mobile manipu- lator. In [10], the author presented a gesture-based human-robot interaction framework, utilizing wearable sensors and an artificial neural network for gesture classification, and introducing a param- eterization robotic task manager for intuitive robot task selection and validation in collaborative assembly operations. In [11], the author introduced a parallel convolutional neural network (CNN) method optimized for recognizing static hand gestures in complex environments, particularly suited for space human-robot interaction tasks, demonstrating superior accuracy over single-channel CNN approaches and other existing methods.

We have implemented two gesture recognition methods: a heuristic-based pointing gesture recognition and pointing direction estimation, and neural network based hand gesture recognition. In both methods, we leveraged the extracted landmarks from body skeleton and hands respectively.

3. Methodology

3.1. Extracting information from verbal commands

In a typical human collaboration, shared instructions often encom- pass specific details like the required action, the target object, navi- gation directions, and the particular location of interest within the scene. Additionally, we frequently use descriptive attributes such as size, relative position, shape, pattern, and color to specify objects, as seen in phrases like ”bring the green box,” ”the book on the right,” or ”hold the blue box” [12]. These details outline various aspects of a task, as depicted in Figure 1, which showcases various task parameters linked to particular instructions.

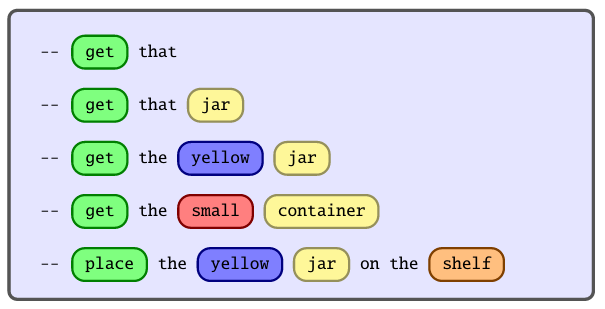

In our research, we developed a dataset tailored for collabora- tive robotic commands, comprising verbal instructions that specify actions and include details on at least one of the following attributes: object name, object color, object location, or object size. This dataset contains 60,769 samples, each annotated with five labels. We thoroughly assessed eight different model architectures for train- ing, ultimately determining that the single-layer Bi-directional Long Short-Term Memory (Bi-LSTM) model delivered the best perfor- mance.

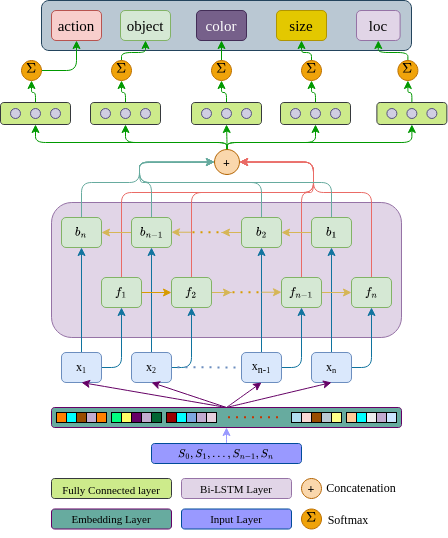

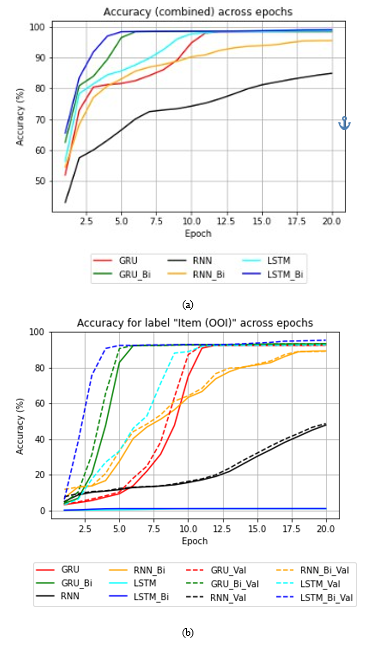

Figure 2 depicts the model architecture, which comprises three neural layers. The model starts with an embedding layer, followed by a Bi-LSTM layer which is connected to a fully connected layer (FCN). The dataset vocabulary size, denoted as V, is used to one-hot encode each word, resulting in a vector size W ∈ R^1×V. The input sequences, consisting of n words, are processed by an embedding layer represented as E. The output from Bi-LSTM cells is concate- nated and then passed through four layers. The resulting outputs from the FCN layer are subjected to softmax activation for the classification of five task parameters. Each classifier is evaluated using Cross Entropy loss L_c. To update the model, we compute the mean of these losses as L_m = ¹ .4  L_c.

3.2. Recognition of pointing gestures

We employed AlphaPose [13] to capture the skeletal joint positions for predicting pointing gestures and their overall direction. For simplicity, we assumed that the user uses one hand at a time for pointing. Following the categorization by [14], the authors distinguished pointing gestures into two types: extended (large) and bent arm (small) gestures. Furthermore, we generalized the forearm’s orientation concerning the body into three categories: across, outward, and straight, as depicted in Figure 3(b).

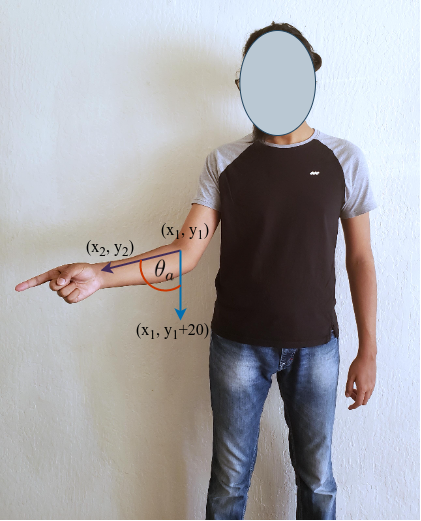

We analyze the forearm angle θa (Figure 3(a)), comparing it against a predefined threshold θt to distinguish between across and outward pointing gestures. When the user isn’t pointing (Figure 3(b)), the forearm angle is smaller compared to when they are pointing. When pointing directly towards the camera (robot’s vision) (Figure 3(c)), the angle approaches 0. To refine this analysis, we introduce the forearm length ratio ρa. If the user isn’t pointing, both forearms show similar lengths (Figure 3(b)). Conversely, anoticeable difference suggests the user is pointing directly (or very close) towards the camera with that arm (Figure 3(b)). Additionally, we determine the pointing direction d by analyzing the relative positions of the wrist and elbow of the pointing arm, enhancing navigational command interpretation.

3.2.1. Deriving θ_a from the positions of the wrist and elbow

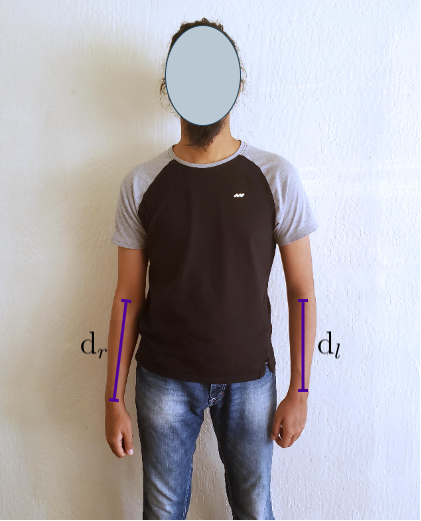

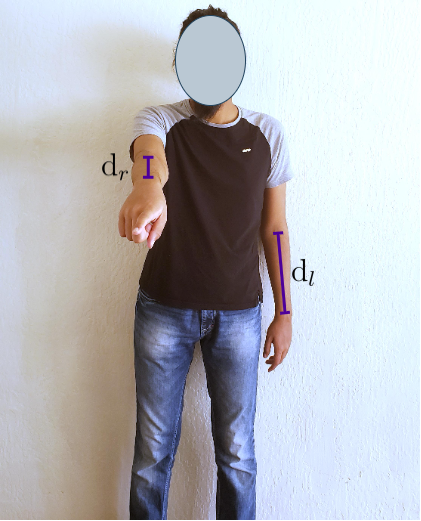

We specifically need the locations of certain skeletal joints. These are locations of the left elbow, left wrist, right elbow, and the right wrist. This ensures our method remains effective even if some body parts are obscured, as long as the pointing hand’s joints are detected. Let (x₁, y₁) denote the coordinates of the elbow, and (x₂, y₂) denote those of the wrist. By defining the 2D vector from the elbow to the wrist as ⃗a = (x₂ − x₁, y₂ − y₁) and using ⃗v = (0, 1) as the refer- ence vertical vector, we can calculate the pointing angle θ_a using Equation 1:

If θa exceeds θt, the corresponding forearm is identified as performing the pointing gesture. Next, we assess the x coordinates of the wrist and elbow to determine the overall pointing direction within the scene—either left or right relative to the body. Additionally, we evaluate the forearm length ratio against a predefined ratio ρt to determine if the user is pointing directly ahead. Specifically, ρt is set to 0.8 and θt to 15◦.

3.3. OOI Prediction

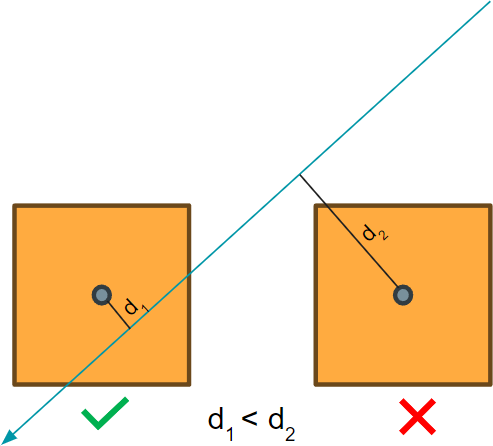

For every object identified, we establish its central point as a ref- erence. Next, the perpendicular distance from the center of each object to the direction vector is computed.. The object found to have the shortest distance is considered the Object of Interest (OOI) is shown in figure 4.

3.4. Gesture recognition

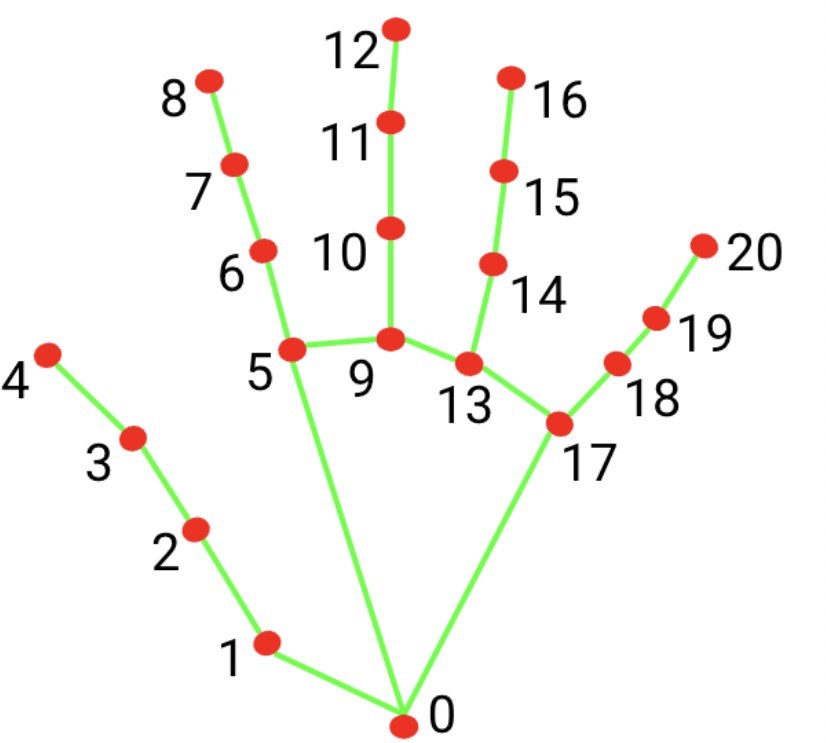

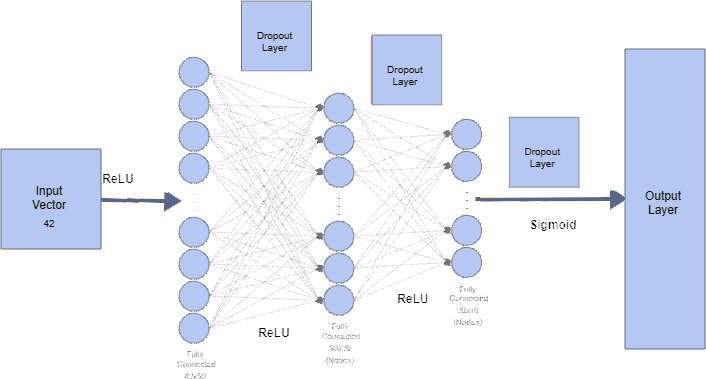

We have identified four common gestures for instructing robots: bring, hold, stop, and point gestures (see Figure 5). This capa- bility enables the robot to navigate toward either an object or a designated location within the scene. Utilizing Google’s Mediapipe library [15], we extracted hand landmarks, providing 21 landmark points for each hand (see Figure 6). These landmarks were captured for both hands during the aforementioned gestures to compile a dataset. Subsequently, the dataset underwent training using a 3- layer fully connected neural network model. Each fully connected layer’s outputs were subjected to a dropout layer and then acti- vated by ReLU (Rectified Linear Unit). The model’s architecture is illustrated in Figure 7.

4. Experimental Result

We have combined pointing gestures and hand gesture recognition systems with the task parameter extraction module and evaluated them separately.

4.1. Pointing Gesture With Verbal Command

During our experiments, participants were assigned to perform precise pointing gestures in predefined scenarios. Each scenario depicted a scene with three distinct objects: two books and a Cheez- It box. Participants were directed to point to one object at a time. For instance, in a specific scenario, they were instructed to extend their right hand and point to the leftmost object. Thus, from this particular data sample, we could analyze that the participant exe- cuted a pointing gesture with their right hand, directing it towards their left, aiming at the object positioned farthest to the right (from their perspective). This dataset served as the foundation for our quantitative evaluations.

The experiments involved positioning the user at distances of 1.22, 2.44, 3.66, and 4.88 meters from the camera. Each system component underwent separate evaluation, encompassing tasks such as extracting parameters from verbal commands, detecting the ac- tive hand, estimating pointing direction and predicting the object of interest. The extracted task parameters were then presented in tabular format to illustrate the results.

We evaluated each frame’s prediction against its label, assess- ing accuracy, precision, and recall. For instance, if a frame’s label specifies ”Right hand: pointing; Left hand: not pointing,” a cor- rect prediction of ”Right hand: pointing” counts as a True Positive; otherwise, it registers as a False Negative. Conversely, predicting ”Left hand: pointing” when the label indicates otherwise is a False Positive, while accurately predicting ”Left hand: not pointing” is a True Negative. Table 1 details the accuracy, precision, and recall metrics across various distances.

Table 2 illustrates various sample scenarios and their corre- sponding task parameters extracted from data sources. The column labeled ”Structured Information” showcases data derived from both the Pointing State and Verbal Command. Each row pertains to a spe- cific scenario, beginning with an indication of whether pointing was involved, followed by the experiment number. Verbal commands, typically involving the fixed task action ”get,” are listed alongside extracted information from both verbal commands and simultaneous pointing states. Predicted Objects of Interest (OOI) that necessitate action are noted, along with the system’s corresponding response. Instances of ambiguity are highlighted in bold within the cells.

Table 1: Pointing Gesture Recognition

Ambiguity occurs when the object of interest (OOI) cannot be identified solely from the verbal command and pointing gesture provided. In these situations, the system informs the user with the message ”Additional information needed to identify the object,” and it waits for the user to provide more input, either by repeating the pointing gesture or by adjusting the command given.

In Table 2, observations indicate that ambiguity arises in dif- ferent scenarios. When the system is in the ”Not Pointing” state, ambiguity occurs due to insufficient object attributes (e.g., Exp# 1, 3), which hinder the unique identification of the OOI, leading the system to request more information. Conversely, in the ”Pointing” state, ambiguity arises when the pointing direction does not intersect with any object boundaries. Verbal commands play a crucial role in reducing this ambiguity by providing additional information.

4.2. Hand Gesture Recognition With Verbal Command

The system processes verbal commands by identifying and extract- ing up to five distinct task parameters, which are subsequently stored for sequential task execution. The transcription of the verbal com- mands and their corresponding extracted parameters is presented in Table 3.

If no matches are identified, the respective parameters are de- noted as None. Each command initiates a task, recorded in the order of execution. Furthermore, Figure 8 illustrates the performance comparison among different models. Subfigure a illustrates the over- all accuracy, while subfigure b highlights the accuracy of Object of Interest (OOI) prediction tasks. Across both evaluations, the Bi-LSTM based model consistently outperforms all other models.

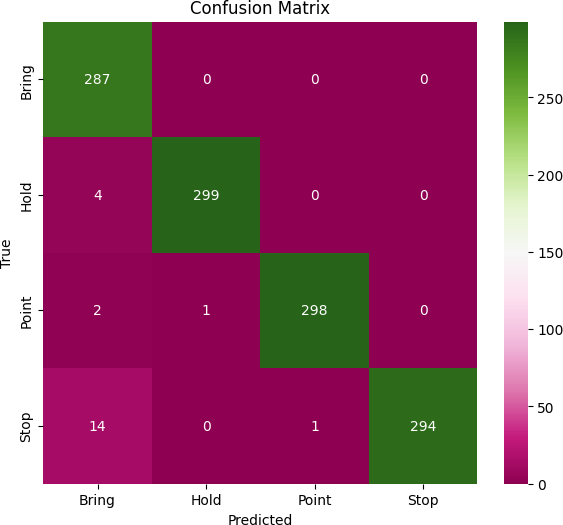

Table 4 showcases the accuracy, recall, and f1-score achieved in recognizing four specific gestures. The model consistently demon- strates high accuracy in interpreting user gestures. Figure 9 illus- trates the confusion matrix for these gestures, highlighting occa- sional misclassifications where the ’Bring’ gesture is mistakenly identified as ’Stop.’ However, considering users receive feedback until the correct action is chosen, these rare errors hold minimal consequence.

Table 2: Generated Task Parameters With Pointing State

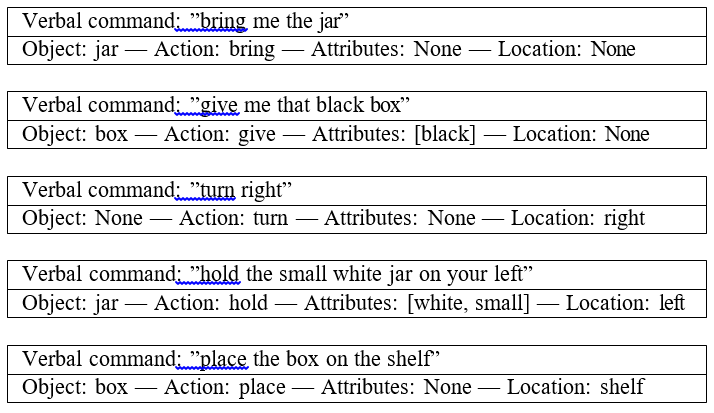

Table 3: Extracted task parameters from various verbal commands

Table 4: Performance metrics

Subsequently, we explored scenarios where users performed gestures alongside predefined natural language instructions. Ex- tracted information was utilized to establish task parameters, with follow-up responses issued in case of ambiguity. Table 5 delineates the sequential steps of a sample interaction, wherein gestures assist in identifying crucial task elements such as ’action’ and ’object.’ Notably, in step 2, the system requests additional information to identify the object of interest (OOI). Conversely, in step 4, although no verbal instructions are provided, the system maintains the pre- vious OOI and executes the ’hold’ action accordingly. This table underscores the utility of combining gesture and verbal cues for robust task configurations.

4.3. Qualitative Insights and Analysis

The results of our experiments provide significant insights into the effectiveness of integrating pointing gestures, hand gestures, and verbal commands for enhancing robotic task configurations. By evaluating each component separately, we were able to assess the accuracy, precision, and recall of the system in identifying the oper- ating hand, estimating pointing direction, and predicting the object of interest (OOI).

Our findings indicate high accuracy in pointing gesture recog- nition across various distances, as demonstrated in Table 1. This suggests that the system can reliably interpret pointing gestures even from a distance of up to 4.88 meters, which is crucial for practical applications in diverse environments.

The integration of verbal commands with gestures significantly improves the system’s ability to disambiguate and infer task param- eters. As shown in Table 2, the combined use of pointing gestures and verbal instructions enhances the system’s capability to identify objects and actions accurately. However, instances of ambiguity still arise, particularly when the OOI cannot be determined solely from the given inputs. In such cases, the system effectively prompts the user for additional information, demonstrating a robust error- handling mechanism.

Additionally, the hand gesture recognition component, when paired with verbal commands, consistently achieved high accuracy, recall, and f1-scores, as illustrated in Table 4 and Figure 9. This indicates the system’s reliability in interpreting user gestures and extracting relevant task parameters, as further evidenced by the sequential task execution detailed in Table 5.

Overall, the implications of these results contribute to the overar- ching goals of the paper by showcasing the potential of multimodal interaction systems to facilitate natural and efficient human-robot interactions. The high accuracy and robustness of the system in various scenarios underline its practicality for real-world applica- tions, where reliable task configurations are paramount for effective robotic assistance.

Table 5: Extracted Task Parameters With Gesture Recognition

1. Y.-L. Kuo, B. Katz, A. Barbu, “Deep Compositional Robotic Planners That Follow Natural Language Commands,” in 2020 IEEE International Conference on Robotics and Automation (ICRA), 4906–4912, IEEE, 2020, doi:10.1109/ICRA40945.2020.9197464.
2. T. Kollar, S. Tellex, D. Roy, N. Roy, “Toward Understanding Natural Language Directions,” in 2010 5th ACM/IEEE International Conference on Human-Robot Interaction (HRI), 259–266, IEEE, 2010, doi:10.1109/HRI.2010.5453186.
3. C. Matuszek, D. Fox, K. Koscher, “Following Directions Using Sta- tistical Machine Translation,” in 2010 5th ACM/IEEE International Conference on Human-Robot Interaction (HRI), 251–258, IEEE, 2010, doi:10.1109/HRI.2010.5453189.
4. R. Cantrell, K. Talamadupula, P. Schermerhorn, J. Benton, S. Kambhampati,
   M. Scheutz, “Tell Me When and Why to Do It! Run-Time Planner Model Updates via Natural Language Instruction,” in Proceedings of the Seventh Annual ACM/IEEE International Conference on Human-Robot Interaction, 471–478, 2012, doi:10.1145/2157689.2157840.
5. M. Skubic, D. Perzanowski, S. Blisard, A. Schultz, W. Adams, M. Bugajska,
   D. Brock, “Spatial Language for Human-Robot Dialogs,” IEEE Transactions on Systems, Man, and Cybernetics, Part C (Applications and Reviews), 34(2), 154–167, 2004, doi:10.1109/TSMCC.2004.826273.
6. S. Tellex, T. Kollar, S. Dickerson, M. Walter, A. Banerjee, S. Teller, N. Roy, “Understanding Natural Language Commands for Robotic Navigation and Mobile Manipulation,” in Proceedings of the AAAI Conference on Artificial Intelligence, volume 25, 2011, doi:10.1609/aaai.v25i1.7979.
7. N. Nguyen-Duc-Thanh, S. Lee, D. Kim, “Two-stage hidden markov model in gesture recognition for human robot interaction,” International Journal of Advanced Robotic Systems, 9(2), 39, 2012, doi:10.5772/50204.
8. S. Iengo, S. Rossi, M. Staffa, A. Finzi, “Continuous gesture recognition for flexible human-robot interaction,” in 2014 IEEE International Con- ference on Robotics and Automation (ICRA), 4863–4868, IEEE, 2014, doi:10.1109/ICRA.2014.6907571.
9. G. H. Lim, E. Pedrosa, F. Amaral, N. Lau, A. Pereira, P. Dias, J. L. Azevedo, B. Cunha, L. P. Reis, “Rich and robust human-robot interaction on gesture recognition for assembly tasks,” in 2017 IEEE International conference on autonomous robot systems and competitions (ICARSC), 159–164, IEEE, 2017, doi:10.1109/ICARSC.2017.7964069.
10. P. Neto, M. Sima˜o, N. Mendes, M. Safeea, “Gesture-based human-robot inter- action for human assistance in manufacturing,” The International Journal of Ad- vanced Manufacturing Technology, 101, 119–135, 2019, doi:10.1007/s00170- 018-2788-x.
11. Q. Gao, J. Liu, Z. Ju, Y. Li, T. Zhang, L. Zhang, “Static hand gesture recognition with parallel CNNs for space human-robot interaction,” in In- telligent Robotics and Applications: 10th International Conference, ICIRA 2017, Wuhan, China, August 16–18, 2017, Proceedings, Part I 10, 462–473, Springer, 2017, doi:10.1007/978-3-319-65289-4 44.
12. F. H. Previc, “The Neuropsychology of 3-D Space.” Psychological Bulletin, 124(2), 123, 1998.
13. H.-S. Fang, S. Xie, Y.-W. Tai, C. Lu, “RMPE: Regional Multi-person Pose Estimation,” in ICCV, 2017.
14. C.-B. Park, S.-W. Lee, “Real-Time 3D Pointing Gesture Recognition for Mobile Robots With Cascade HMM and Particle Filter,” Image and Vision Computing, 29(1), 51–63, 2011, doi:10.1016/j.imavis.2010.08.006.
15. Google, “Google/mediapipe: Cross-platform, customizable ML solutions for live and streaming media.” https://github.com/google/mediapipe, ac- cessed: 2022-03-13.
16. “Hand landmarks,” https://developers.google.com/static/ mediapipe/images/solutions/hand-landmarks.png, accessed: 2023-12-12.
